Description

Multi-parameter veterinary patient monitor designed to provide accurate monitoring for animals during examinations and procedures. Features a 12.1-inch color LCD display with full viewing angles and supports ECG, blood oxygen, blood pressure, respiratory rate, temperature, and heart rate monitoring.

Built with fanless operation to reduce contamination, visual and audible alarms, and a long-lasting rechargeable battery. Offers large data storage, ECG waveform playback, and optional carbon dioxide module support for expanded monitoring.

Specifications:

• Display: 12.1-inch color LCD (1024 × 768)
• Standard Parameters: ECG, Blood Oxygen (SpO2), Blood Pressure (NIBP), Respiratory Rate, Temperature, Heart Rate
• ECG Frequency Response: 0.05–150 Hz
• Maximum Heart Rate: 500 bpm
• Startup Time: 6 seconds
• Battery: Built-in lithium battery
• Battery Runtime: ≥240 minutes
• ECG Playback: ≥36 hours
• Data Storage: ≥800 hours of continuous monitoring
• Optional: Built-in thermal recorder, ETCO₂ module support
• Warranty: 2 years (main unit), 6 months (accessories)

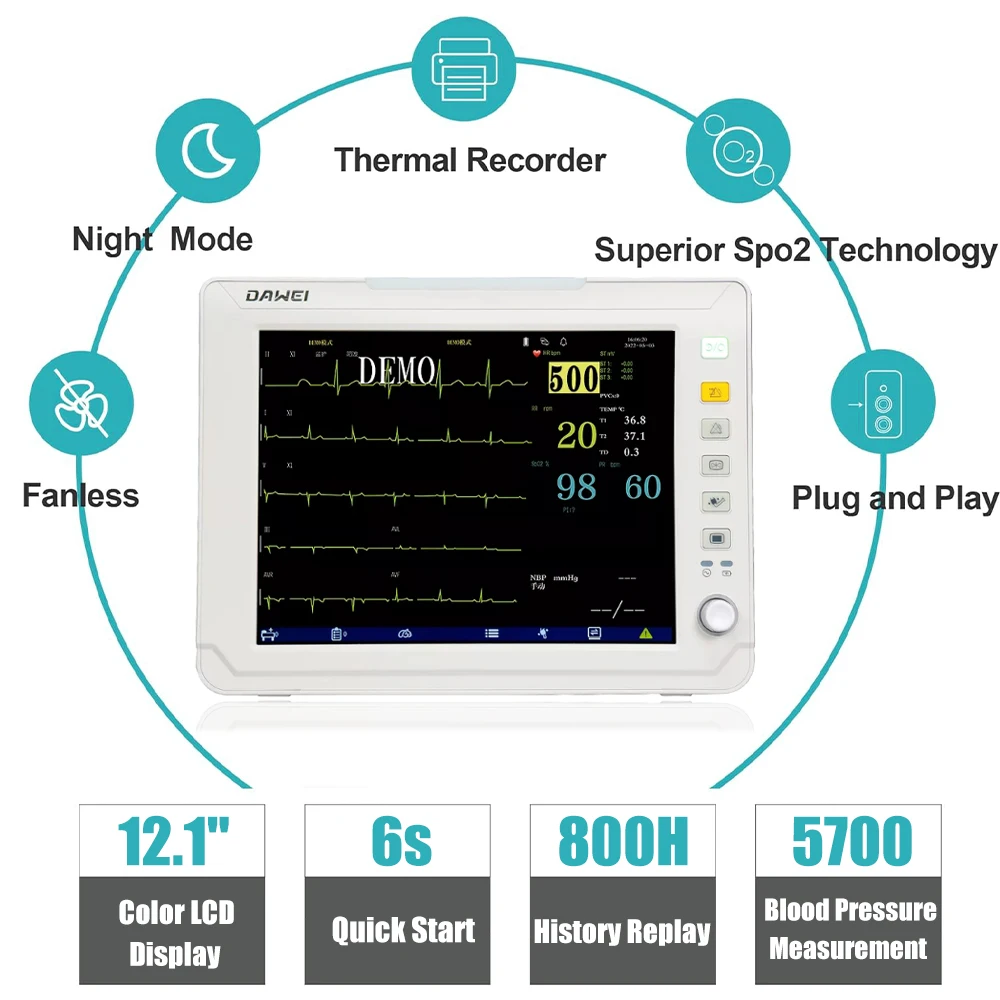

Features:

• High-resolution full-color display
• Real-time ECG and vital sign monitoring
• Audible and visual alarm system
• Fanless design to reduce contamination
• Anti-interference technology for reliable measurements
• Large-capacity data storage and ECG playback
• Low battery protection without data loss
• Supports optional carbon dioxide monitoring

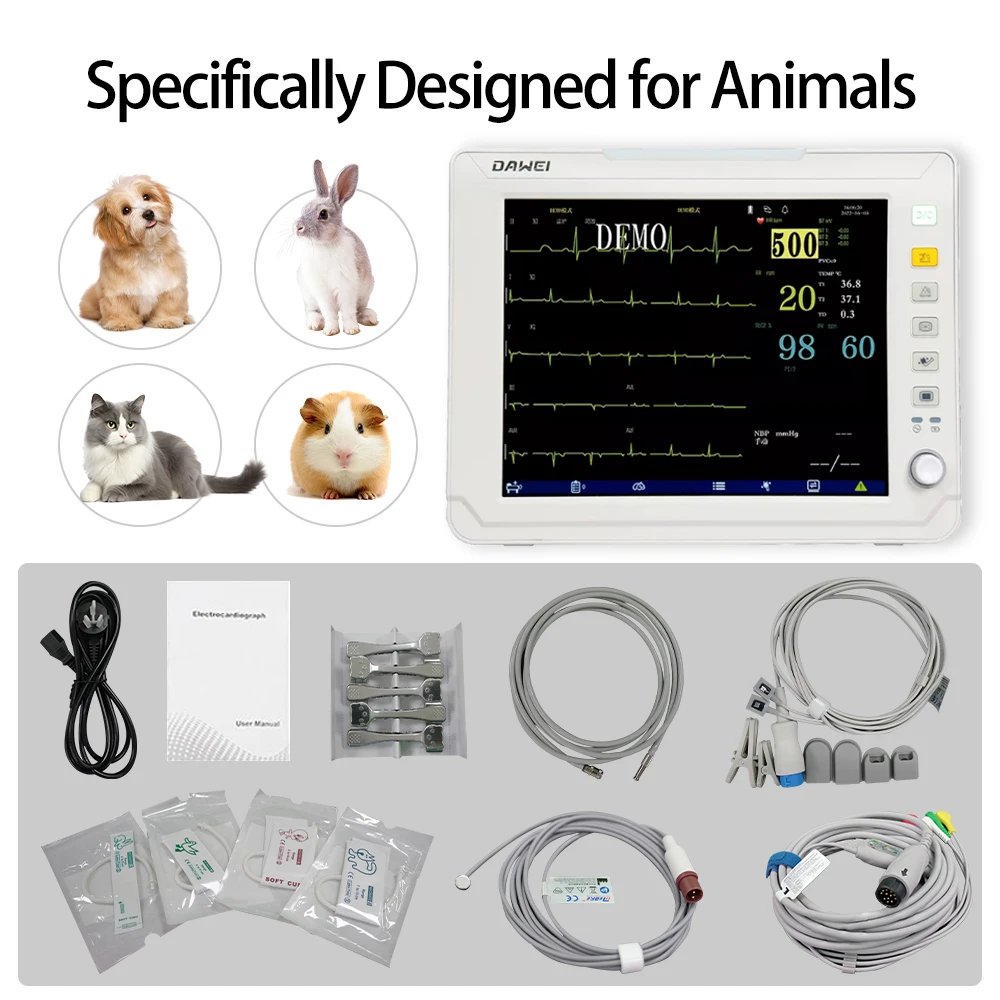

• Designed for veterinary use
